Polyimide Spray Coating Systems

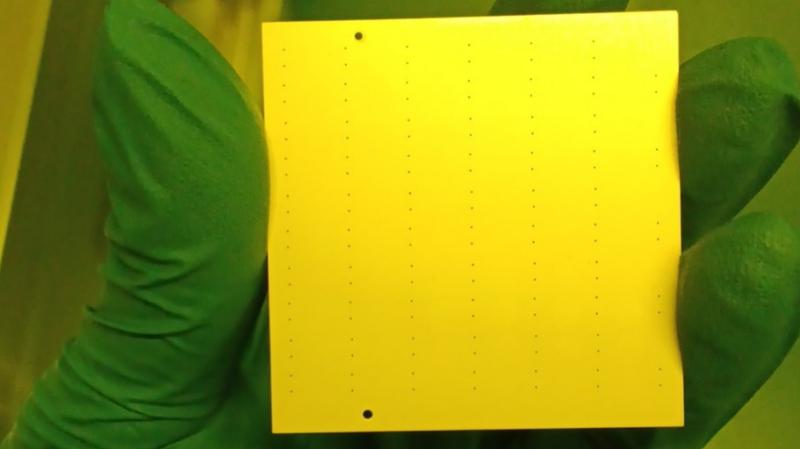

Polyimide Coating Machine for Semiconductor Wafers

Ultrasonic polyimide coating equipment applies premium polyimide thin films on semiconductor wafers before the cutting procedure. This coating equipment realizes outstanding coating uniformity, accurate thickness regulation and reliable bonding force for solvent-containing polymer coating materials widely adopted in semiconductor manufacturing. As a clean and high-efficiency replacement for spin coating equipment, the ultrasonic coating technique cuts raw material waste and maintains steady running performance, fitting both laboratory small-batch research and mass production scenarios.

This polyimide coating equipment series is developed to sustain stable coating effects on full wafers, enabling manufacturers to obtain reproducible thin-film structures, ideal surface morphology, and adjustable polyimide thickness from submicron to several micrometers.

High-Precision Ultrasonic Technology for Wafer Polyimide Coating

Ultrasonic spray coating serves as an accurately adjustable deposition method to lay curable solvent-based polyimide polymers onto semiconductor wafers. The low-speed spraying mode minimizes stray overspray, sharpens coating edge outlines and achieves full coverage of wafer surfaces. This technology can be assembled into diverse modules and complete equipment setups to match wafers of various dimensions and required coating widths.

Operators can precisely adjust multiple core technical parameters via the ultrasonic coating process:

1. Polyimide film thickness
2. Coating coverage range and full-surface wafer coating
3. Droplet dimension and overall spray uniformity
4. Lamination characteristics of polymer and adhesive layers
5. Solvent volatilization and drying parameters
6. Micron-grade thin films that preserve coating robustness and semiconductor component functionality

Compared with conventional spin coating solutions, this spraying technology generates smooth, homogeneous and long-lasting polyimide films with drastically lower material consumption, alongside broader adjustability for film thickness and coating patterns.

Main Semiconductor Wafer Polyimide Coating Scenarios

The ultrasonic coating equipment executes polyimide coating procedures on intact wafers before cutting, covering the following core industrial applications:

• Polyimide dielectric thin films for semiconductor chip production
• Polyimide films for redistribution layer (RDL) manufacturing
• Insulating and protective polyimide cover layers above photoresist and dielectric composite structures
• Polyimide film deposition for MEMS wafers
• Curable polymer coating during wafer-level packaging and manufacturing processes

All above procedures are finished on complete wafers prior to individual chip separation, which perfectly matches standard cleanroom semiconductor production lines.

Core Advantages of Ultrasonic Polyimide Coating Technology

1. Even polyimide film distribution across the entire wafer surface
2. Lower polyimide material consumption versus spin coating techniques
3. Accurate micron-scale regulation of film thickness and surface morphology
4. Superior bonding performance on silicon wafers and advanced semiconductor base materials
5. Anti-clogging stable ultrasonic spraying performance for continuous long-hour production
6. Programmable, replicable spray patterns to guarantee consistent manufacturing results
7. Fully sealed clean equipment structure compliant with semiconductor cleanroom standards
8. Good compatibility with various solvent-containing polymer coating raw materials
