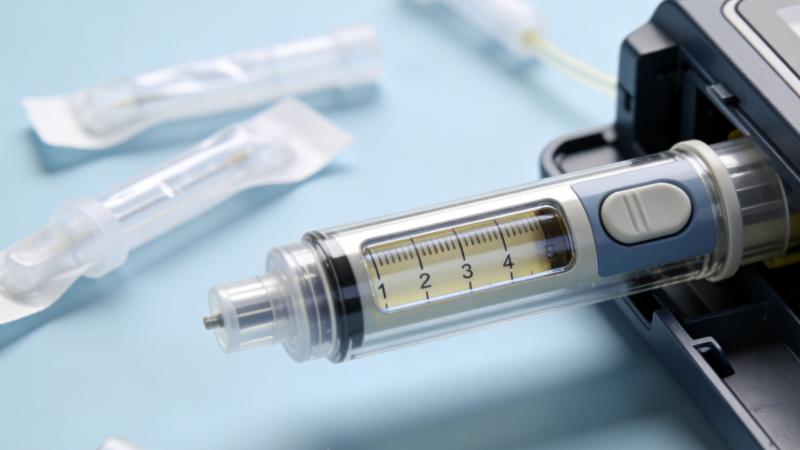

Ultrasonic Spraying Silicone Oil in Insulin Pump Reservoirs

As a key medical device for precise insulin infusion, the smooth operation of the reservoir in an insulin pump directly affects infusion accuracy and patient experience. Excessive frictional resistance between the piston and tubing wall inside the reservoir can lead to infusion jams and dosage deviations. Silicone oil, as a high-performance lubricant, effectively reduces the coefficient of friction. Ultrasonic spraying technology, with its precise atomization advantages, has become an ideal solution for achieving uniform silicone oil coating inside the reservoir, providing a core guarantee for the stable operation of the insulin pump.

The lubricating properties and biocompatibility of silicone oil are the core foundation for its suitability in the medical field. The polysiloxane backbone of silicone oil molecules, composed of silicon-oxygen bonds, has high flexibility and can form a dynamic structure similar to a “liquid lubricating layer” on the contact surface. Its coefficient of friction is only 0.01-0.1, far lower than that of conventional materials. At the same time, silicone oil possesses excellent chemical stability and biocompatibility; it will not chemically react with insulin or cause adverse reactions in human tissues, ensuring drug purity and safety. This characteristic makes it the optimal choice for lubrication inside drug reservoirs, and achieving uniform, micro-coating of silicone oil is the key technology.

Ultrasonic spraying technology uses high-frequency vibration to precisely atomize silicone oil, perfectly matching the coating requirements inside drug reservoirs. Its core principle is to use high-frequency vibration (20kHz~120kHz) to atomize silicone oil into fine particles of 5-50 micrometers, which are then precisely delivered to the inner wall of the reservoir via a carrier gas. Compared to traditional immersion coating and spray gun coating, ultrasonic spraying has significant advantages: traditional immersion methods easily lead to silicone oil accumulation and uneven thickness, and may even peel off after drying; spray gun coating suffers from thick-edge effects and excessively large particles. Ultrasonic spraying’s penetrating nozzle can reach deep into the reservoir, achieving 360° coating without dead angles, forming a uniform, highly adhesive lubricating film with extremely high material utilization, allowing for precise control of silicone oil usage and avoiding waste and excessive residue.

In practical applications, this technology ensures coating quality through multi-parameter collaborative control. For the tubular structure of the insulin reservoir, either a convergent or penetrating nozzle can be used. Adjusting the vibration frequency controls the droplet size, and precisely regulating the spraying speed and carrier gas flow rate ensures the coating thickness is controlled within the nanometer to micrometer range. The coated reservoir’s inner wall forms a continuous lubricating film, significantly reducing piston movement resistance and preventing jamming and dose fluctuations during infusion. Simultaneously, the non-contact atomization method of ultrasonic spraying does not damage the reservoir’s inner wall, making it adaptable to various reservoir substrate materials and accommodating the needs of large-scale production.

The application of this technology combination significantly enhances the clinical value of insulin pumps. The uniform silicone oil coating ensures smoother piston movement, guaranteeing accurate insulin infusion and reducing the risk of blood glucose fluctuations due to dose deviations. Stable lubrication extends the reservoir’s lifespan and reduces equipment failure rates. Furthermore, the efficiency and controllability of ultrasonic spraying make it suitable for automated production lines, ensuring consistency in batch products through standardized processes, providing technical support for the large-scale production of medical devices.

With the increasing demand for precision in medical devices, the application of ultrasonic spraying silicone oil technology in insulin pump reservoirs will be continuously optimized. In the future, the wear resistance and durability of the lubricating film can be further improved by adjusting the silicone oil formulation and spraying parameters, or by combining it with composite coating technology to achieve multi-functional integration such as lubrication and antibacterial properties. This technology not only solves the friction problem of reservoirs but also promotes the performance upgrade of precision medical devices such as insulin pumps, providing a more reliable technical guarantee for the precise treatment of diabetic patients.
