Fully Enclosed Catheter Coating System

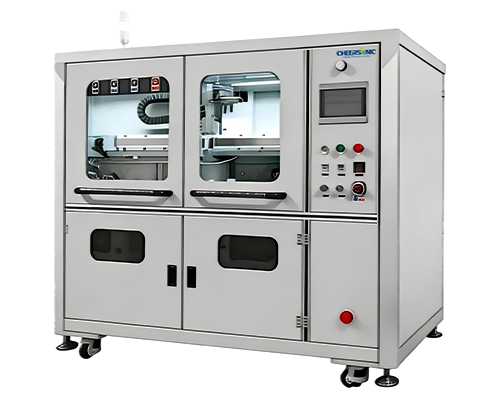

UMC3500 fully enclosed catheter coating system: an efficient and precise innovator in medical manufacturing
In the field of medical catheter manufacturing, the efficiency, accuracy, and material utilization of coating processes are directly related to product quality and clinical safety. The emergence of the UMC3500 fully enclosed catheter coating system has brought a breakthrough solution to this field. As a professional equipment designed specifically for lubricating and hydrophilic coatings, it has reconstructed the production logic of catheter coatings with innovative technology, becoming a key equipment for medical equipment enterprises to enhance their core competitiveness.
The fully enclosed structure is one of the core design highlights of UMC3500. This structure not only effectively isolates the interference of dust and impurities in the external environment on the coating process, ensuring the cleanliness of each conduit coating, but also accurately controls the coating material, avoiding the common material volatilization and pollution problems in traditional open equipment from the source. In terms of batch processing capability, the system can simultaneously process up to 5 catheters per coating cycle, which is more than 4 times higher than traditional single tube processing equipment. It perfectly meets the needs of large-scale production in medical enterprises, especially for the manufacturing of products with high demand such as cardiovascular intervention catheters and nerve intervention catheters.
The leapfrog improvement in material utilization rate is the most competitive advantage of UMC3500. In the traditional immersion coating process, the catheter is completely immersed in the coating material, and a large amount of material adheres to non essential areas or is wasted with dripping, resulting in an effective utilization rate of less than 30%. The UMC3500, through precise spraying and control technology, only applies coating materials to the surface of the conduit that needs to be treated, significantly reducing material consumption compared to immersion coating methods. In some scenarios, the savings can reach over 60%. This not only significantly reduces the cost of raw material procurement for enterprises, but also reduces the generation of waste coating materials, which is in line with the current development concept of green and environmental protection in the medical manufacturing industry.
In terms of coating accuracy and functionality, UMC3500 also performs excellently. It supports selective area coating function, which can accurately form coatings on specific areas such as the tip and sidewall of the catheter according to clinical needs, while avoiding coating coverage of key areas such as marked points and connection parts of the catheter, ensuring that the performance of the catheter is not affected. At the same time, the system can achieve precise stacking of multiple layers of coatings, and through precise control of the thickness and material of each layer of coating, create a composite coating that combines lubricity, wear resistance, and biocompatibility. More importantly, the coating process has extremely high repeatability accuracy, and the thickness error of the catheter coating produced in multiple batches can be controlled at the micrometer level, providing a solid guarantee for the consistency and reliability of medical products.
From efficiency improvement to cost control, from precision assurance to environmental requirements, the UMC3500 fully enclosed catheter coating system has redefined the production standards of medical catheter coatings with comprehensive technological advantages, becoming an important force in promoting the high-quality development of the medical catheter manufacturing industry.
