ULTRASONIC SPRAYING ENERGY MATERIALS
Ultrasonic spraying is ideal for deposition of solar cells, fuel cells, silicon cell coatings, and is increasingly used in research and production of spraying processes. Ultrasonic Spraying Energy Materials technology can be used to deposit uniform and extremely thin coatings on substrates of any width. Ultrasonic spraying technology enables very thin coatings with extremely high uniformity, resulting in improved electronic conversion rates and transport.
FUEL CELL
Ultrasonic fuel cell catalyst coating systems are uniquely suited for these challenging applications by creating highly uniform, repeatable, and durable coatings.
- Utilization> 95%
- Spraying proton exchange membrane with high uniformity and good adhesion
- Optional diameter particles flexibly optimize the through-hole property of the coating.
ELECTROLYZERS
Hydrogen production by electrolysis of water is the most advantageous method for producing hydrogen. Utrasonic coating systems are ideal for spraying carbon-based catalyst inks onto electrolyte membranes used for hydrogen generation. This technology can improve the stability and conversion efficiency of the diaphragm in the electrolytic water hydrogen production device.
SPRAY PYROLYSIS & TCO
Ultrasonic Spray Pyrolysis Equipment is being used in a wide variety of applications from nanoparticle formation to crystalline thin film deposition. In a high temperature ultrasonic spray pyrolysis process, precursor solutions such as Aluminum Zinc Oxide are sprayed onto a substrate heated to approximately 300-500 degrees Celsius.
SOLAR CELL
Ultrasonic spray technology has been proven successful for depositing thin film solar cell coatings of anti-reflection layers, TCO coatings, Buffer layer coatings, PEDOT, and active layers in thin film solar cell manufacturing.
- High-uniformity film
- Clean, precise spray patterns that are easily shaped for various applications.
- Easy to adjust and repeatable coating parameters.
LITHIUM BATTERISE

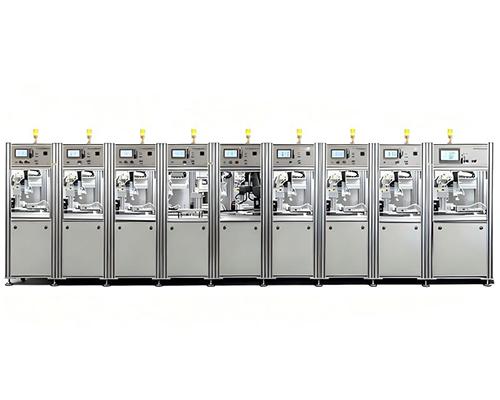

The coating of the pole piece is of great significance to the capacity, consistency and safety of lithium batteries. Automatic ultrasonic coating system is equipped with a conveyor for substrate transfer and ultrasonic spray nozzles can form a nozzles bridge to cover very large spray area. It is mainly suitable for high volume production applications.
SLURRY PROCESSING
Ultrasonic slurry processing equipment produces agitation due to the instantaneous acoustic cavitation effect of ultrasonic waves, which is especially beneficial for the dispersion and depolymerization of slurry.
The average size of particles formed by ultrasonic dispersion can be 0.1 to 10um
Strong controllability and repeatability
Recommended Popular Devices
Advantage:
80% reduction in material consumption
Reduce waste and air pollution
- Low maintenance and downtime
- Spray precision coatings
Highly controllable spraying produces reliable, consistent results
No blockage
Ultra-low flow capacity for intermittent or continuous operation
High-uniformity film
Very tight droplet distribution (select droplet size based on nozzle frequency)
- During the spray process, ultrasonic vibrations disperse the suspended agglomeration particles
Application:
- Fuel cell
Thin film photovoltaic cells
Thin Film Solar Coatings
Calcium and titanium solar cells Cigs/czts Solar cell CdTe Solar cell
- Organic solar cells
- Carbon nanotubes/nanowires
- Graphene coating
- Anti-reflective coating
- Solar Glass Manufacturing
- Silicon photovoltaic cells
