Cardiac Catheter Wire PI Coating
Ultra-Fine Insulated Wires in Cardiac Electrophysiology Catheters — The Role of Platinum-Iridium and Polyimide Coatings
1. Why Do Cardiac Electrophysiology Catheters Need Miniature Wires?
Cardiac electrophysiology technologies play an important role in diagnosing and treating cardiac arrhythmias.
During electrophysiology procedures, physicians use specialized electrode catheters to record electrical activity inside the heart and identify abnormal electrical conduction pathways.
Some electrophysiology catheters also incorporate radiofrequency ablation or other therapeutic technologies to treat selected cardiac tissues.
As catheter designs become more sophisticated, manufacturers must integrate additional electrodes and signal pathways into increasingly limited spaces.
This creates demand for miniature conductive wires with reliable electrical insulation.
2. Potential Applications of Platinum-Iridium Wires
Platinum-iridium alloys are widely recognized for their electrochemical stability and corrosion resistance and are used in various medical electrode components.
In certain cardiac electrophysiology catheter designs, fine platinum-iridium wires may serve as electrode connections or specialized conductive structures.
A wire diameter of 0.08 mm provides a relatively small cross-sectional area, potentially supporting compact catheter assemblies and high-density electrical connections.
However, reducing wire dimensions also increases the importance of reliable insulation.
Insulation failure between adjacent conductive pathways can result in electrical interference, measurement errors, or other safety concerns.
Consequently, insulation quality is a critical consideration in miniature catheter design.
3. Why Consider Polyimide Insulation?
Polyimide offers favorable dielectric properties, thermal stability, and thin-film processing capabilities.
These characteristics make PI a potential insulation material for selected miniature medical wire applications.
Its possible benefits include:
Electrical Isolation
PI coatings help separate adjacent conductive pathways and reduce unintended electrical contact.
Dimensional Efficiency
Thin insulation layers minimize increases in overall wire diameter.
Processing Compatibility
Suitable PI formulations may tolerate certain downstream assembly and thermal processing operations.
Surface Protection
The coating provides an additional insulating barrier around the conductive substrate.
For example, applying a 5–10 μm radial PI coating to an 80 μm platinum-iridium wire produces a theoretical finished diameter of 90–100 μm.
This compact structure may be useful in certain space-constrained catheter components.
4. Applying PI to 0.08 mm Platinum-Iridium Wires Using Ultrasonic Spray Coating
Traditional wire insulation methods include dip coating, extrusion coating, wire enameling, and other thin-film deposition processes.
For extremely fine wires, ultrasonic spray coating represents an alternative technology worth investigating.

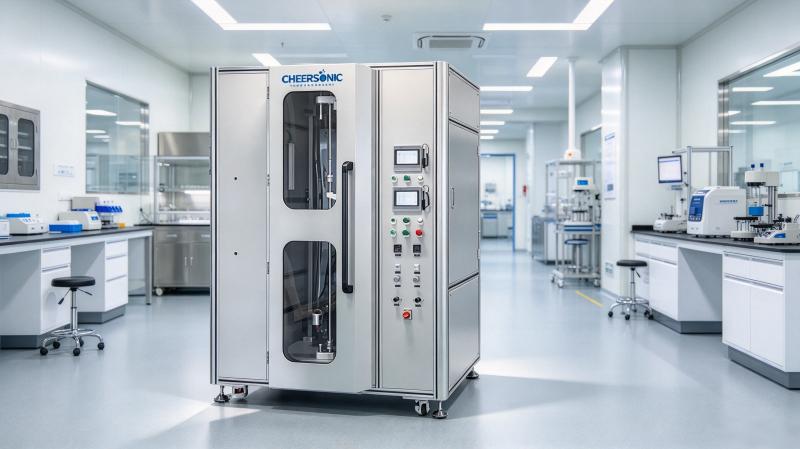

An ultrasonic spray coating machine can atomize a PI solution with suitable viscosity and deposit the coating onto continuously moving platinum-iridium wires measuring 0.08 mm in diameter.
To achieve a radial insulation thickness of 5–10 μm, multiple thin coating passes are generally preferable to attempting to deposit the entire thickness in a single pass.
A proposed system may include:
- Precision wire unwinding and rewinding.
- Low-tension wire transport.
- Multi-directional ultrasonic spray nozzles.
- Intermediate drying modules.
- Controlled thermal curing equipment.
Important process parameters include PI solution concentration and viscosity, atomization stability, wire speed, tension, circumferential coating uniformity, and curing conditions.
Cross-sectional measurements and electrical testing are necessary to determine whether the coating meets the intended insulation requirements.
Ultrasonic spraying does not automatically guarantee pinhole-free insulation or superior performance compared with established wire enameling methods. These advantages must be demonstrated through practical testing.
5. Opportunities in Future Catheter Manufacturing
As cardiac electrophysiology catheters evolve toward higher electrode densities and more advanced functions, the efficient use of internal space will remain an important design consideration.
Precision PI coatings on fine platinum-iridium wires may provide an additional manufacturing option for miniature signal pathways, electrode connections, and specialized catheter components.
Conclusion
Ultra-fine wires used in cardiac electrophysiology catheters must combine compact dimensions with reliable electrical insulation.
Continuous ultrasonic spray coating of polyimide on 80 μm platinum-iridium wires is a potential manufacturing approach that deserves further technical evaluation for advanced catheter applications.
