Hemostatic Sponge Inline Ultrasonic Cutter
We specialize in providing customized solutions to meet the needs of emerging cutting-edge industries such as nanotechnology, fuel cells, semiconductors, medical, spray pyrolysis, and more.
UFM8000 is an upgraded and transformed from a variety of assembly line cutting machines, and has become a new generation of double-station assembly line ultrasonic cutting equipment. The equipment has the characteristics of assembly line operation, multi-cutting mode and high efficiency, double-station cutting operation, longitudinal knife slitting, horizontal knife slicing or dicing, in addition to a waste rejection system to automatically remove food edge waste, Guarantee the production efficiency of hemostatic sponge and the production quality of hemostatic sponge. The equipment is easy to use, and can be completely matched with the traditional hemostatic sponge production line, paving the way for the development and upgrading of enterprise products, so as to adapt to the larger market consumption demand. Ultrasonic vibration reduces the frictional resistance between the blade and the hemostatic sponge, so that the blade can cut the hemostatic sponge smoothly without deformation, and there will be no burning of the cut surface. Ultrasonic vibration reduces material sticking on the blade, thereby reducing downtime in cleaner production systems. Throughout the cutting process, the blade surface remains smooth, clear and clean.
- Output: 200-350 hemostatic sponges can be cut per hour
- The cut surface is smooth and beautiful without burning
- Simple and fast product positioning, multi-functional and all-round cutting according to needs
- The cutting products can be automatically positioned and cut according to the parameters entered in advance
- During the slitting process, the operation is automatically completed without human intervention, which improves work efficiency
Features and Parameters
Feature
• All stainless construction
• Precise positioning, multi-stage variable speed, adjustable slitting speed
• Titanium alloy with optional tool
• Self-developed multi-axis control system
• Fully automatic development of multi-axis control systems
• Has a friendly human-machine interface
• Self-contained infrared sensor protection device to ensure operator safety
• Automatic frequency tracking, real-time tracking of ultrasonic cutter frequency
• 3 system permissions – Operator, Supervisor and Technician
Basic Parameters

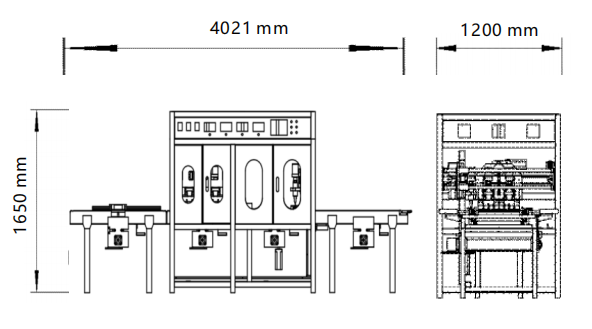

• Size: 1200*4021*1650mm
• Voltage: 220V 50-60 Hz 10A
• Power: 4.5Kw
• Current: 18A
• Effective cutting height: 90mm (90mm)
• Maximum cutting width: 600*400mm (can be customized)
• Control: 7-inch human-computer interface (independently developed by Cheersonic)
• Product feeding and discharging: manual feeding or automatic feeding
• Certificate: CE, FDA
