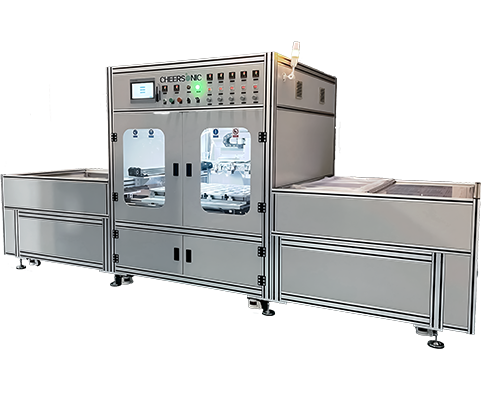

UAM6000XL-SS Industrial Ultrasonic Thin Film Coating Equipment

The machine can be equipped with a variety of patented ultrasonic nozzles for micro-flow quantitative precision thin film coating. It is widely used in industries requiring planar substrate spraying, such as hydrophilic/hydrophobic coatings, transparent conductive layers, fuel cell proton exchange membrane preparation, AR, AG, AF coatings, other inks, and thin-film solar cells.

The UAM6000XL-SS inline ultrasonic thin film coating equipment features a modular design, allowing seamless integration into existing production lines or standalone operation as an independent coating unit. The system supports standard or customized configurations, including automatic substrate feeding and high-precision positioning modules, dual-side coating systems, micron-level ultrasonic quantitative dispensing technology, and variable-width spray heads with controllable atomized droplet size, which can precisely meet the core requirements of high-demanding industrial applications.

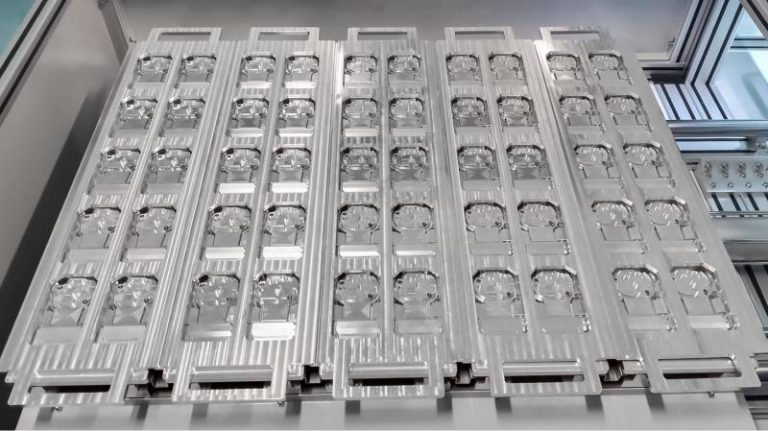

The equipment offers full-scenario scalability to accommodate diverse coating needs, from small precision medical components to large-area panels. It enables batch single spraying of more than 50 small in vitro diagnostic products, while also achieving uniform coating on extra-large substrates such as glass substrates and thin film panels of over one meter. The system design emphasizes operational flexibility, supporting single or multi-layer
overlay coating processes within the same production line without extra adjustments to core configurations, greatly improving production efficiency.

The equipment can be equipped with a variety of patented ultrasonic nozzles, focusing on micro-flow quantitative precision thin film coating. With excellent coating uniformity and thin film adhesion, it is widely applied in the field of planar substrate treatment across many industries, including but not limited to: hydrophilic and hydrophobic functional coatings, transparent conductive film coating, proton exchange membrane processing for fuel cells, AR/AG/AF functional coatings, special ink coating, thin-film solar cell manufacturing, etc. It provides stable and reliable technical support for high-performance coating demands in various industries.
